1D CCD Handheld Wired Corded Barcode Scanner USB Cable Reader Support Screen Code
Testing Video:
视频播放器
00:00
00:00
Product Description:

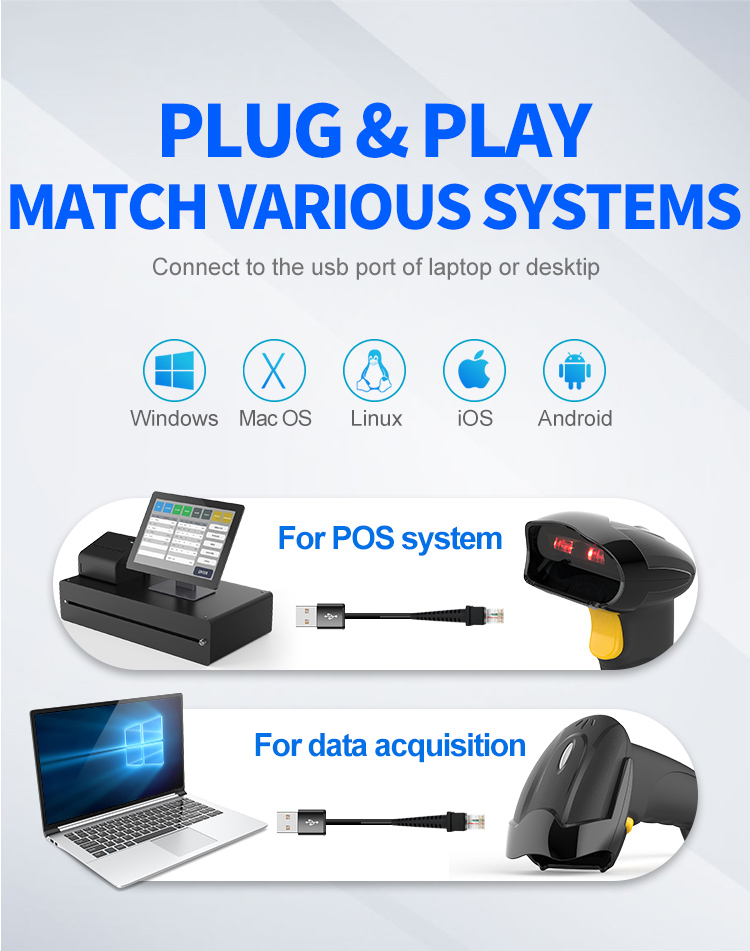

IBC-720L CCD barcode scanner is good performance on reading 1D bar codes. Durable, Drop-Resistant & Ergonomic. Made to last day in and day out with high quality ABS plastic for shock-proof ruggedness. Your hand will love the ergonomic grip. It can easily scan common 1D barcodes directly from the paper even those having poor printing or scratches. It is widely used in retail stores, supermarket, library, hospital, pharmacy and other industries. This handheld scanner is compatible with Windows, Mac and Linux. It also syncs with programs such as Quick books, Word, Excel, Novell and other common software. It also supports editing features such as inserting, separating, filtering, and case conversion.
Product Features:

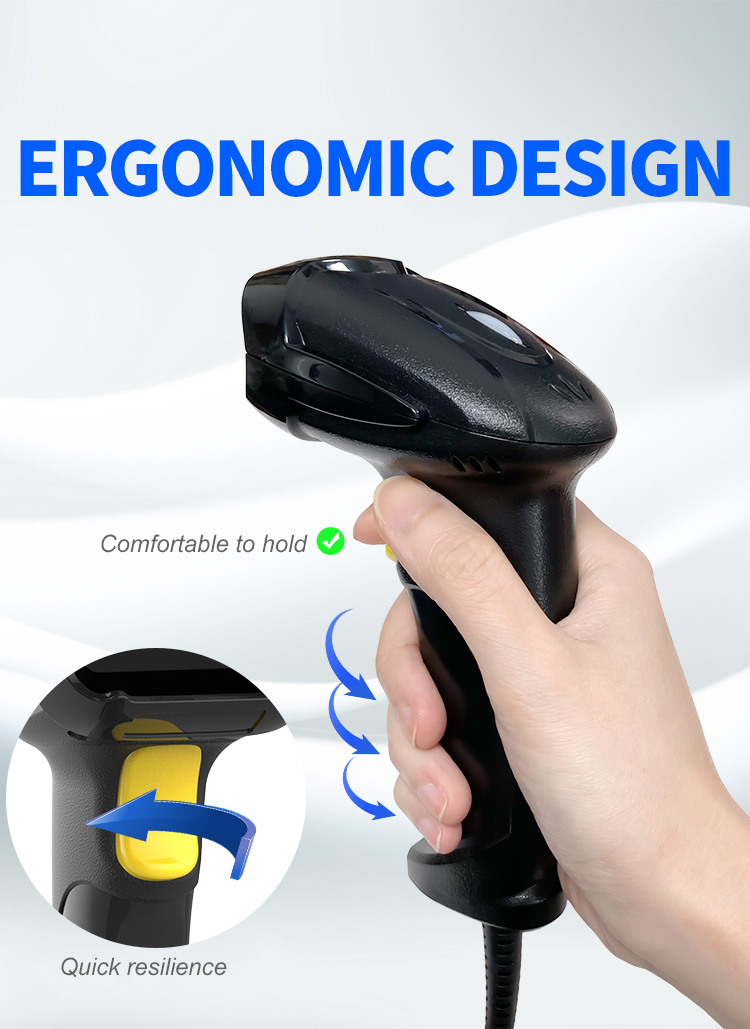

• Good ergonomic design

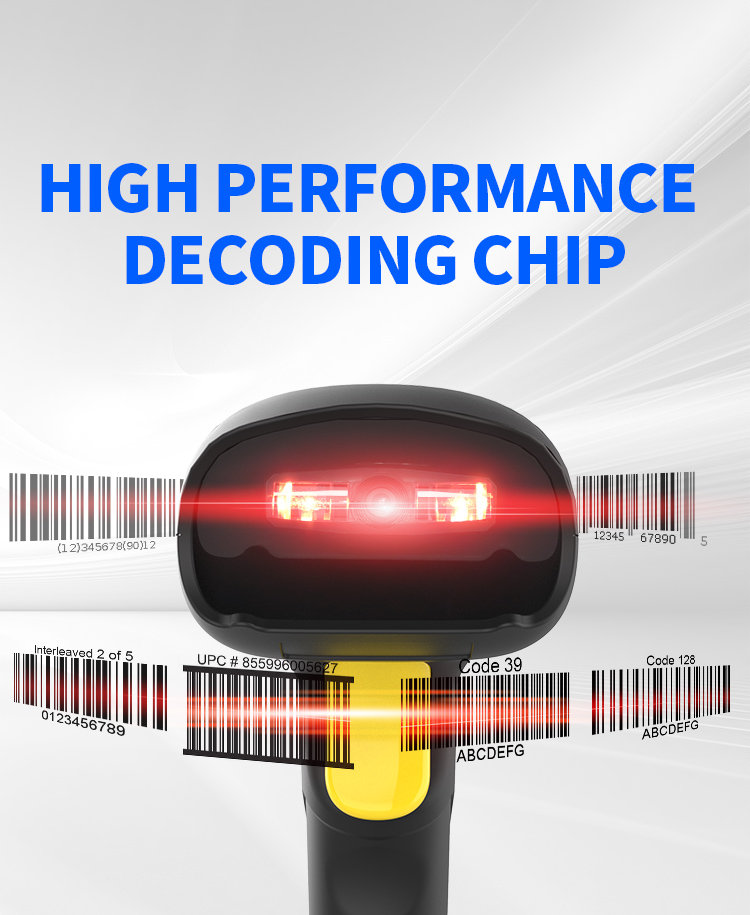

• Excellent Decoding Ability for 1D bar codes
• Auto-scan mode enables hands-free operation
• Great decoding accuracy
Product Specification:
| Technical Parameter | |
| Model | IBC-720 |
| Item | Handheld Laser 1D Wired Barcode Scanner |
| Physical Parameter | |
| Type | Handheld Wired Barcode Scanner |
| Material | ABS+TPE+PC |

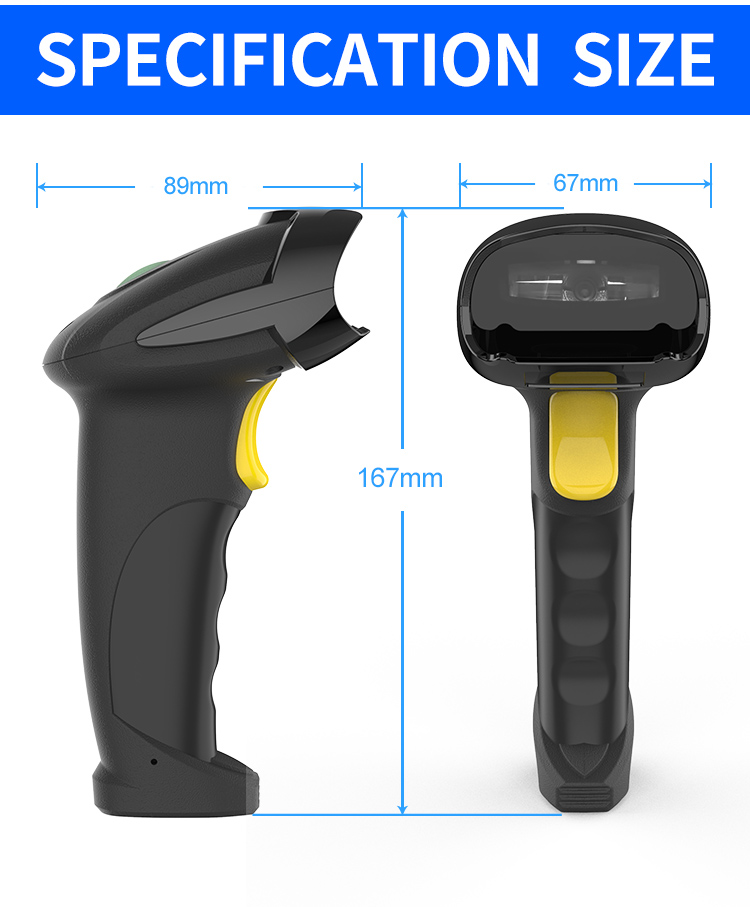

| Size | Length*Width*Thickness: 167*97*65mm |
| Color | White / Black |
| Power Supply | DC 5V ±5% |
| Weight | 115g (Without the cable) |
| Performance Parameter | |
| Interface | USB, RS232 |
| Sensor | Linear CCD sensor |
| Light Source | 632nm red diode (LED) |
| Professor | 32-bit ARM Cortex-M3 MCU |

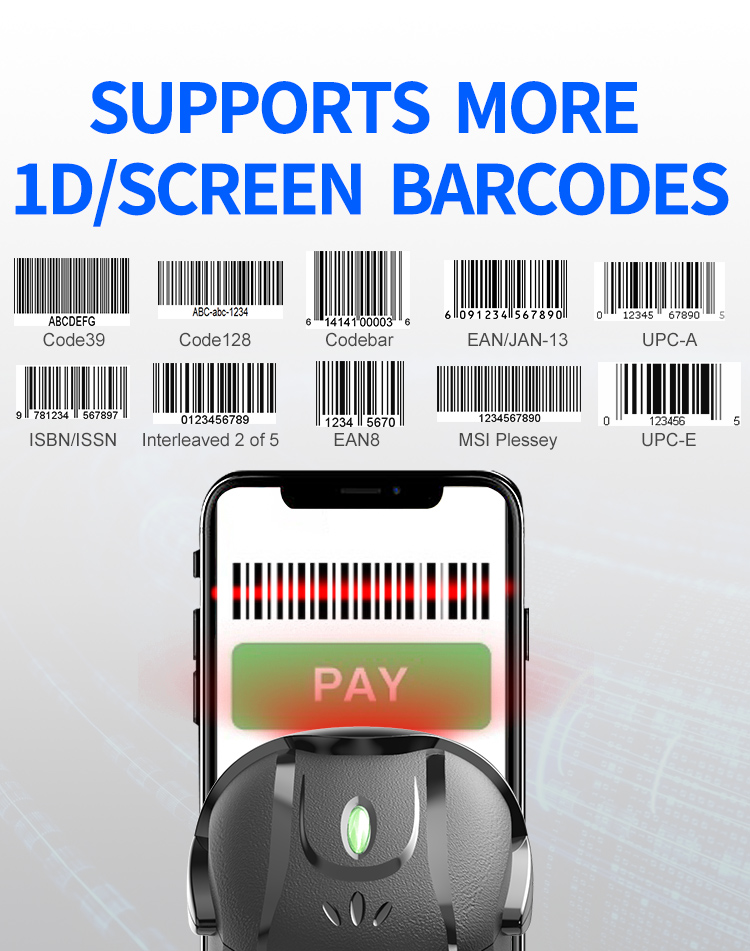

| Decoding capability | Codabar, Code 11, Code 93, MSI, Code128, UCC/EAN-128, Code 39, EAN-8, EAN-13, UPC-A, Industrial 25, Standard 25, 2/5 Matrix |
| Resolution | 4mil (0.1mm) PCS45% |
| Depth Of Field | 500mm@20mil/0.5mm, PCS90% |
| Scanning Speed | 150scans/sec |
| Scanning Mode | Manual, Continuous scanning |
| Scanning Width | 5cm-30cm |
| Prompt Mode | Buzzer, Indicator light (LED) |
| Print Contrast | 30% |
| Scanning Angel | Roll35°, Pitch65°, Yaw65° |
| Environment Parameter | |
| Operating Temp. | 0 to 50 ºC / 32 to 122 ºF |
| Storage Temp. | -20 to 70 ºC / -4 to 158 ºF |
| Operating Humidity | 20 – 95% (No condensing) |
| Storage Humidity | 20 – 95% (No condensing) |
| IP Grade | ≥IP54 |
| ESD protection | 15kv |
| Shock Resistance | Withstands multiple times 1.5m drops to concrete |

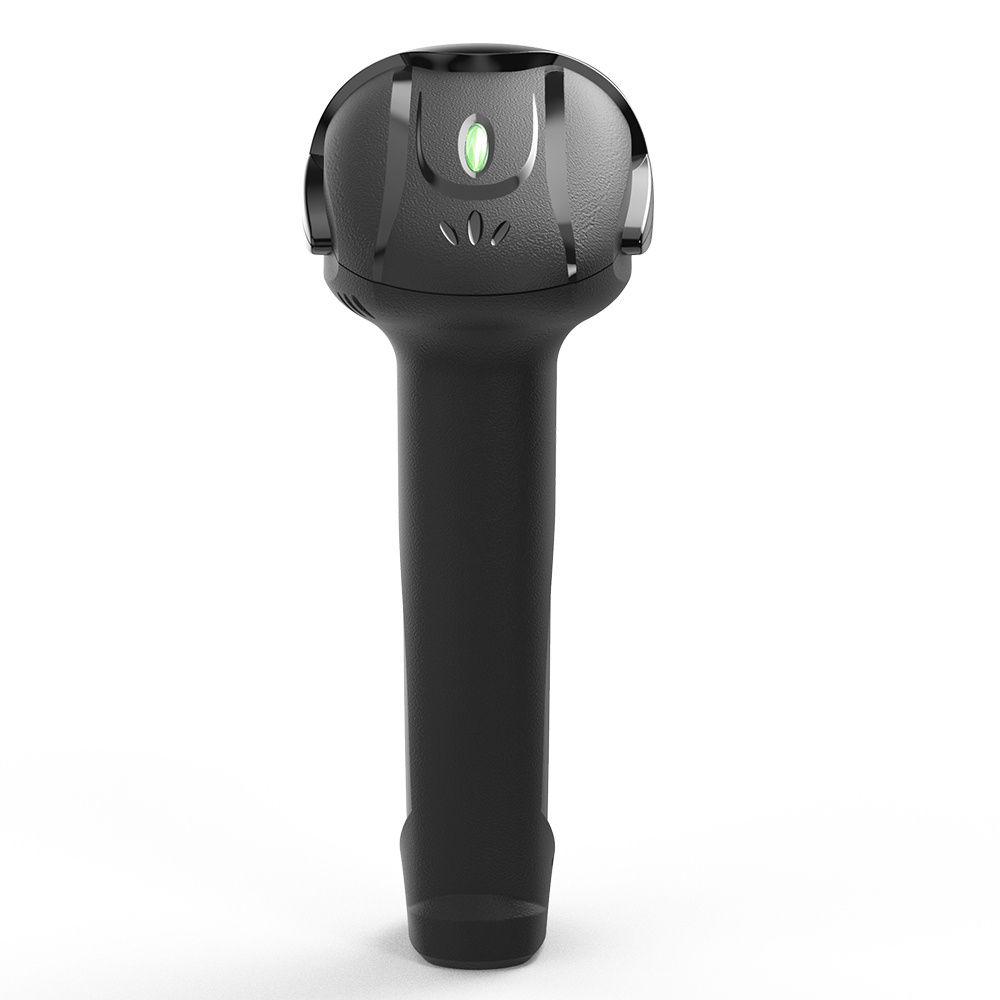

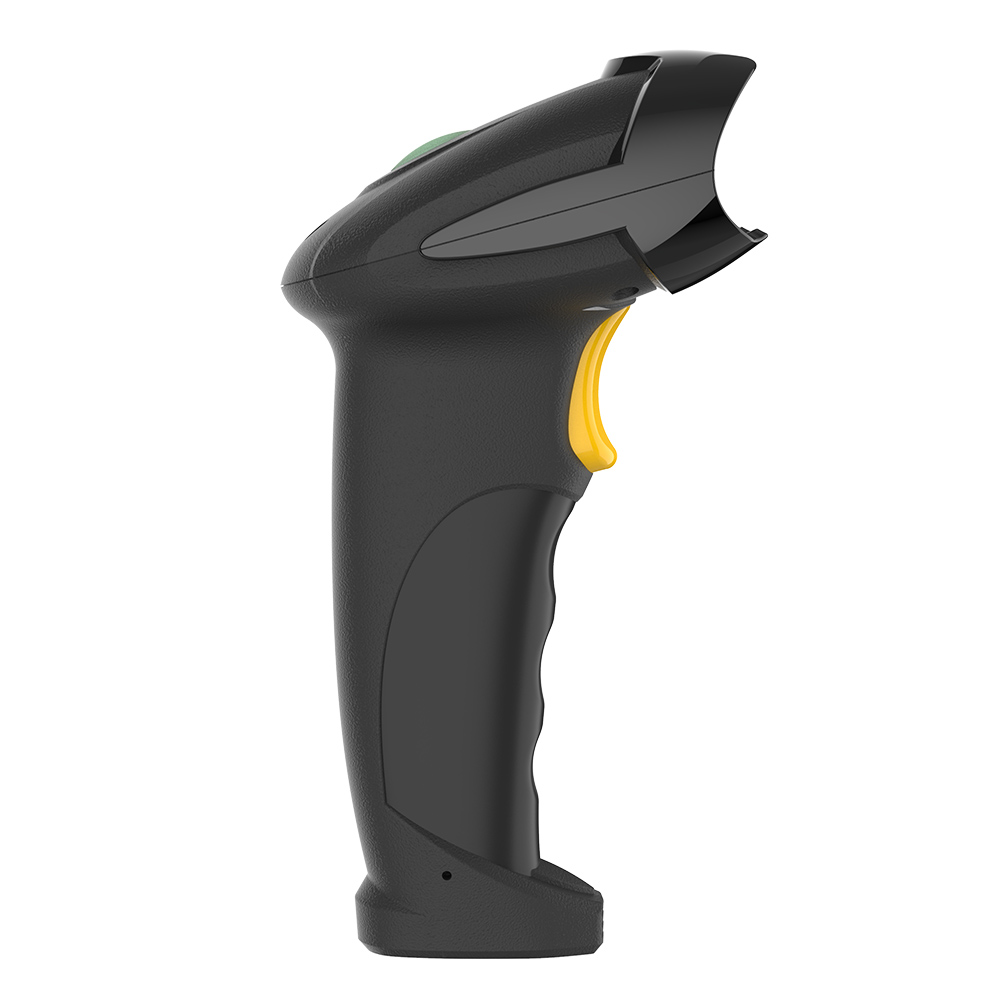

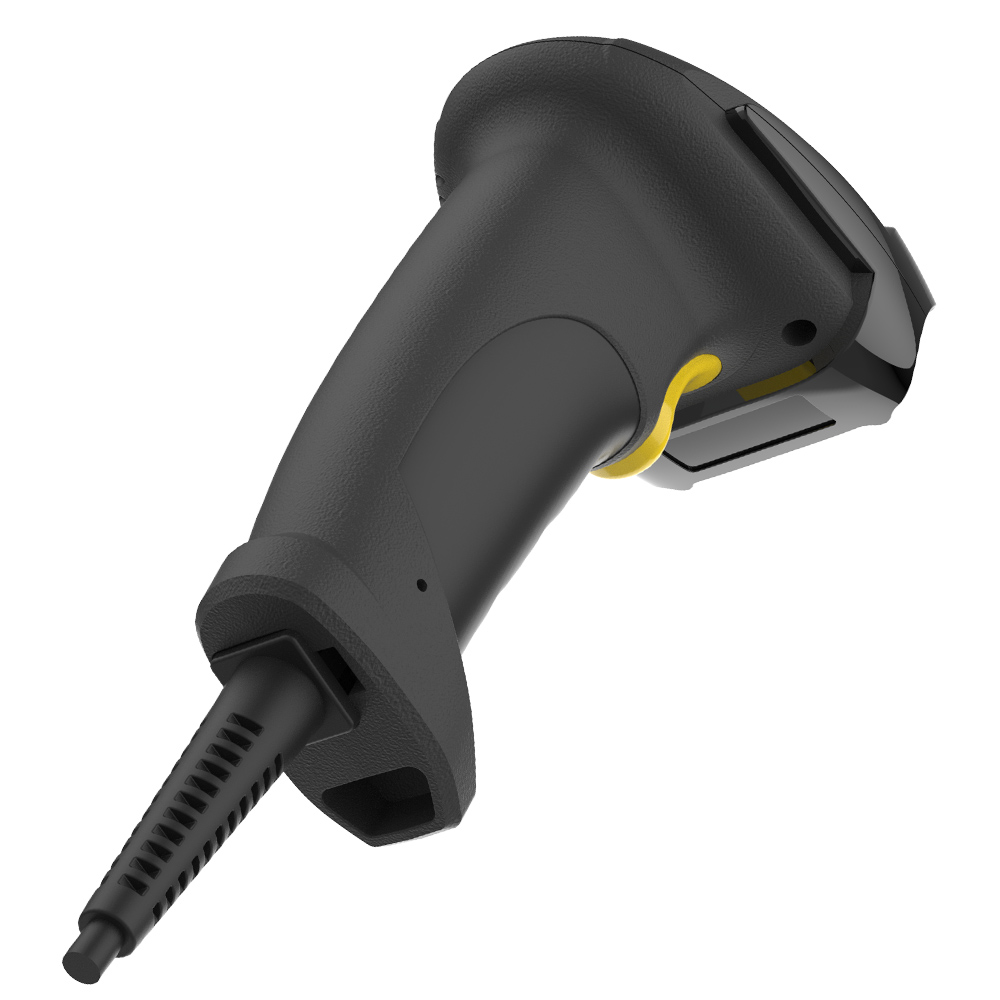

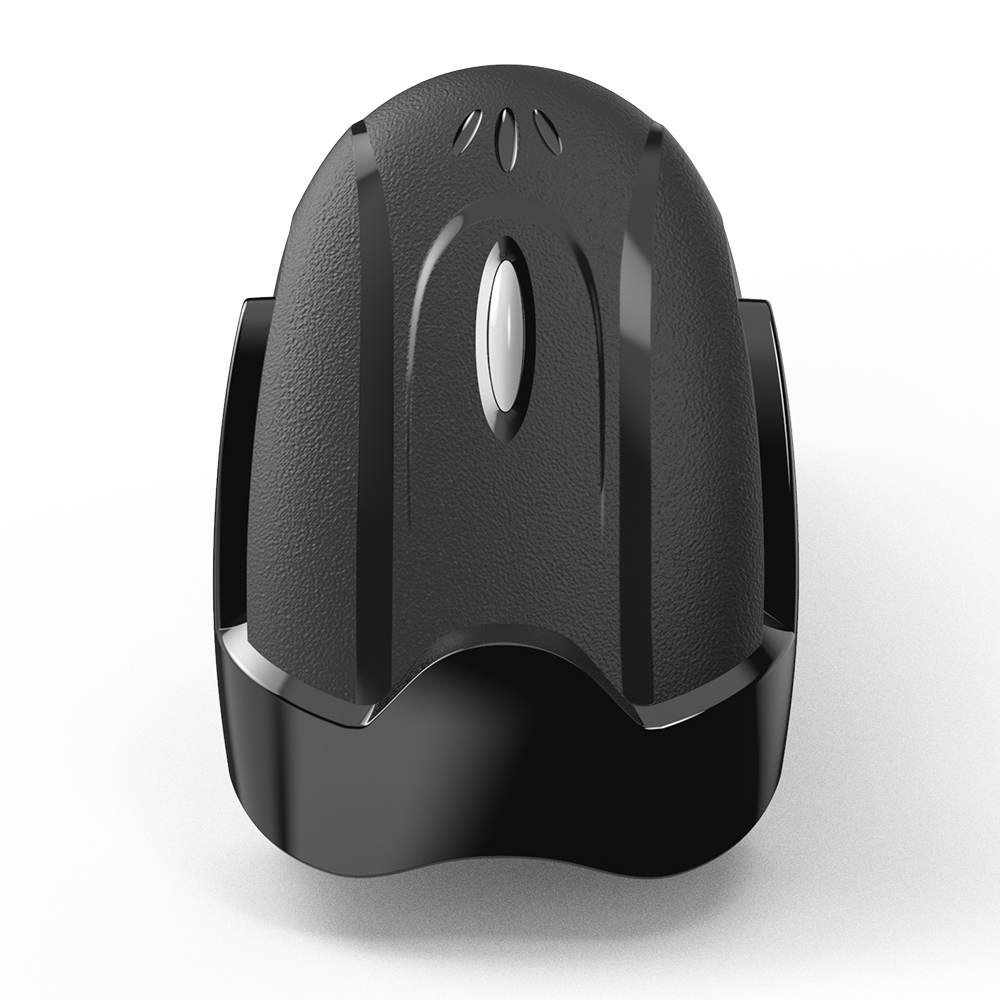

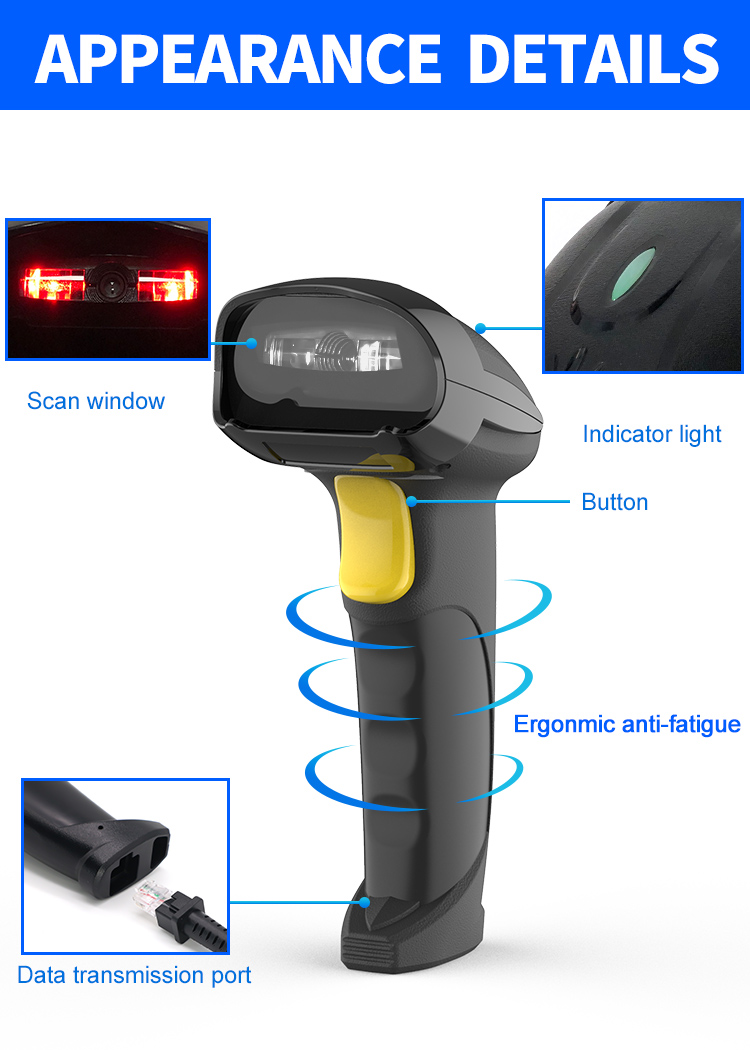

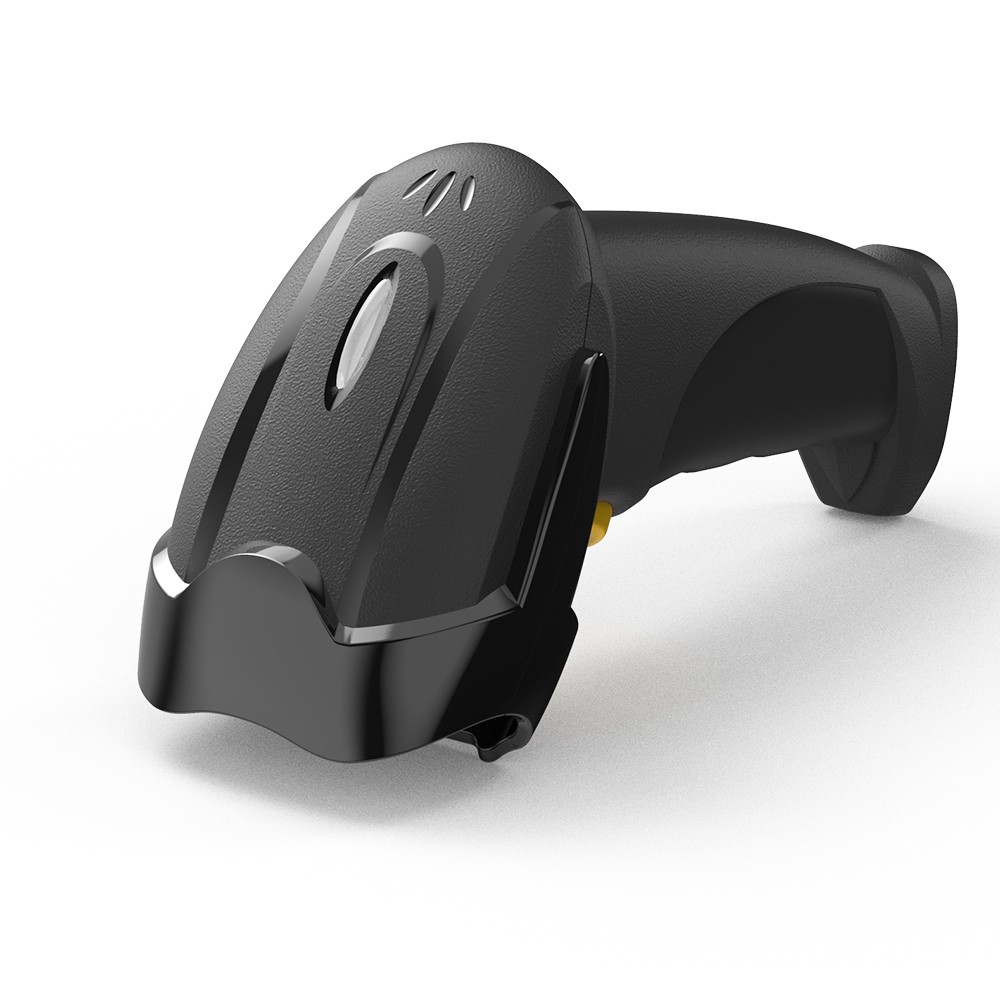

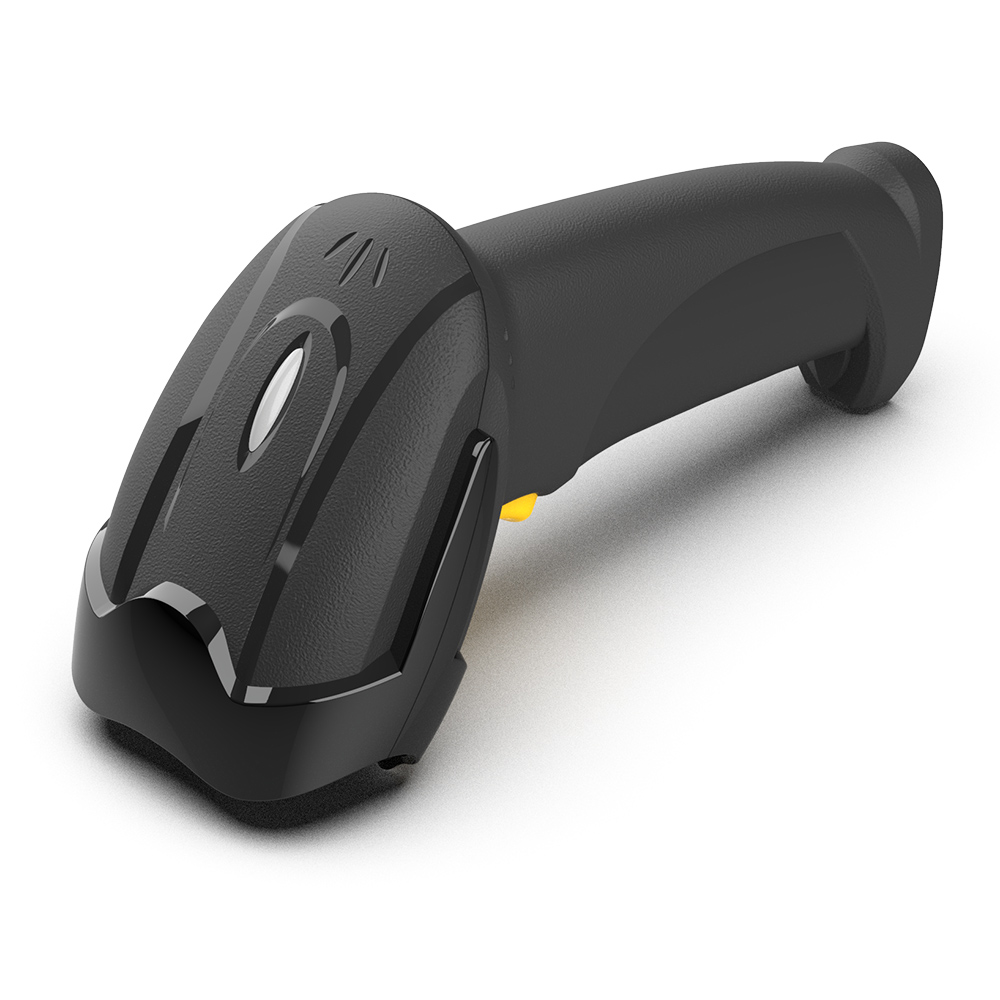

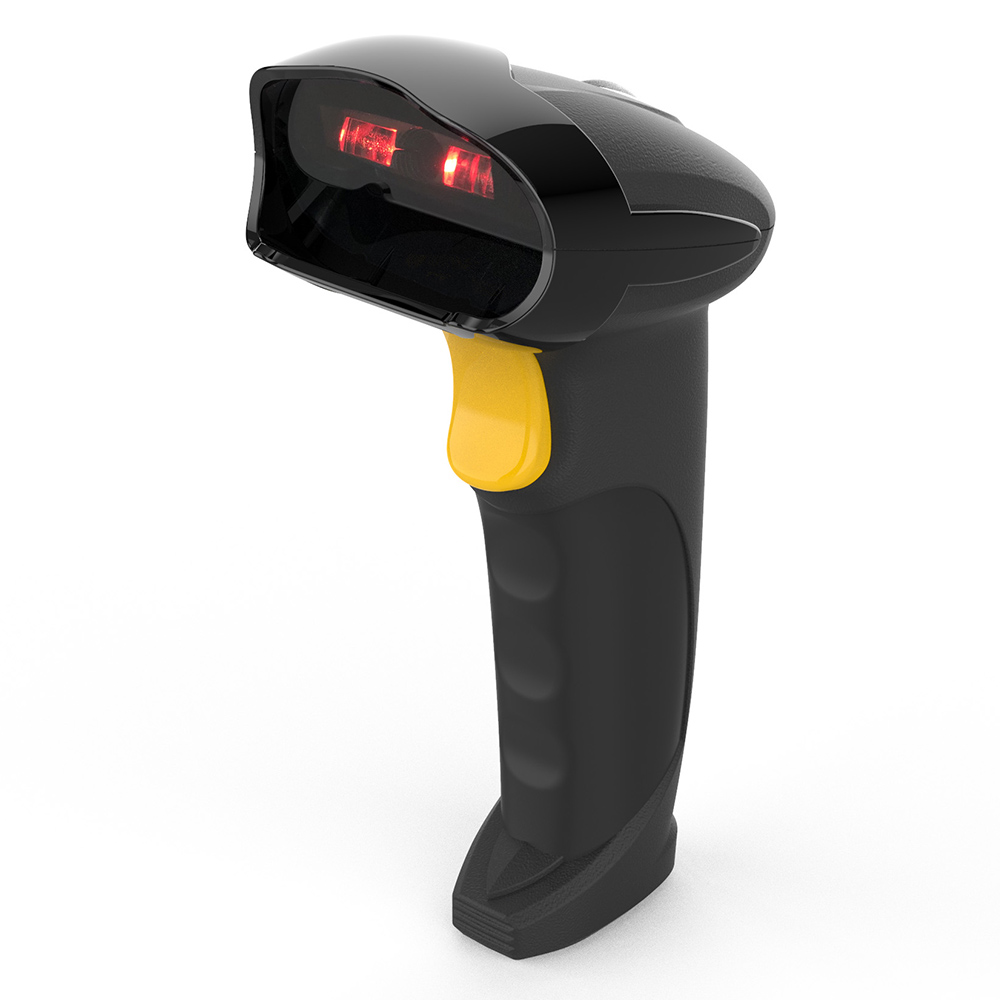

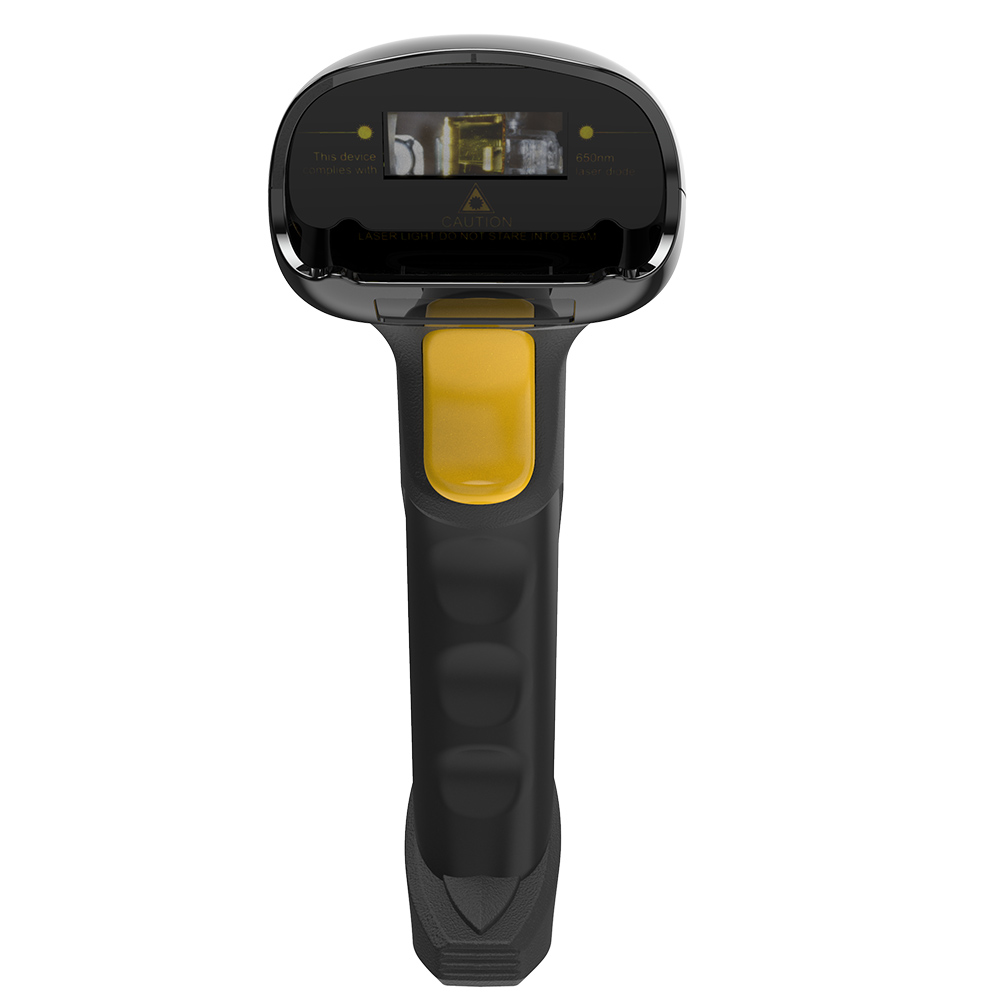

Product Pictures:
